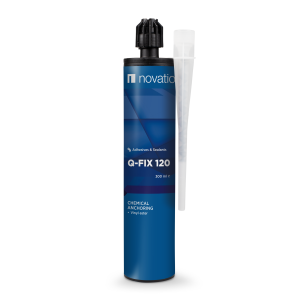

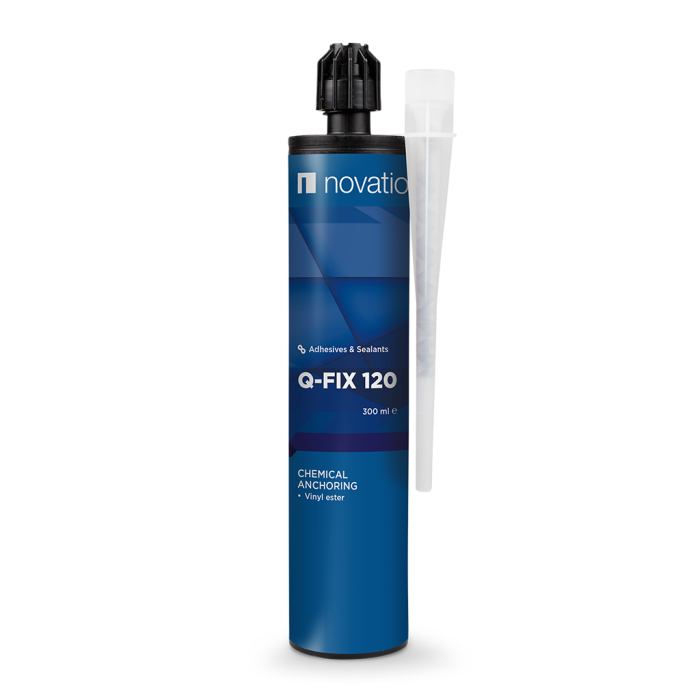

Q-Fix 120

SUPERSTRONG AND SUPERFAST CHEMICAL ANCHORING

Both in dry and moist drill holes, even under water, even up to -5 ° C.

Exceptionally chemical and UV resistant.

Anchors in both full and hollow bricks, concrete blocks, Ytong, ....

Extremely long shelf life, even opened.

q-fix-120-280ml-en-bc-1024

Packaging

SKU EAN Description
q-fix-120-280ml-en-bc 610128000 - 5415207002927 - Q-Fix 120 - cartridge 280ml 610128000 5415207002927 Q-Fix 120 - cartridge 280ml

Description

Q-Fix 120 has been specially developed for heavy load bearing chemical anchors in hollow and solid materials such as stone, concrete, aerated concrete, ... . Q-Fix 120 is a waterproof, impermeable attachment. Q-Fix 120 is a vinyl ester resin that has the best mechanical characteristics and offers better chemical resistance. Q-Fix 120 also has all of the required permits: the European Technical Approval (ETA/CE) option 7 for uncracked concrete and fire class F120.

Application

  • chemical anchoring
  • mounting rails, fences, masts, antennas, sun shields, roll-down shutters, lift casings, heating and cooling systems,... by using anchored wire rods, hooks, bolts, hinges, profiles,...

Technical information

q-fix-120-280ml-en-bc-1024

Q-Fix 120

SUPERSTRONG AND SUPERFAST CHEMICAL ANCHORING

q-fix-120-280ml-en-bc-1024
  • Basis: vinyl ester resins.
  • Colour: grey.
  • Odour: weak odour, styrene-free.
  • Application temperature of the cartridge +/- 20°C.
  • Temperature resistance after complete hardening: from -40°C to +80°C, with peaks up to +120°C.
  • Storage: 5 to a maximum of 25°C. Certificates: F120 and ETA.
  • Adhesion: very good adhesion on all porous materials; less good to poor adhesion on smooth surfaces.
  • Shelf life: 18 months, keep dry, cool and frost-free
  • Safety measures: consult the Safety Data Sheet.

Technical documents

Instructions

  • Drill holes according to the table.
  • Ensure the holes are dust free using a brush or Novair.
  • Use the cartridge at room temperature.
  • Screw the mixing tip on the cartridge and spout out 10 cm before use.



In solid stone:

Fill the borehole from back to front.

In hollow stone:

The harpoon plug increases efficiency and reduces consumption when anchoring in hollow materials.

Glass fabric such as Nova Powergrip reinforcement fabric is a convenient alternative: turn the fabric up to the desired diameter, slide it into the borehole and fill it from the back to the front.



  • Insert the threaded rod into the hole with a slight twisting motion.
  • Smooth excess product or let it harden and remove it with hammer and chisel later on.



Storage options:

1. Remove the mixing tip and thoroughly clean the cartridge. Close the cartridge again with the corresponding screw.

2. Leave the mixing tip on the cartridge. A new mixing tip can simply be mounted next time you need to use the cartridge.
